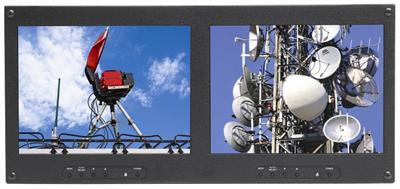

10.4" Dual Rackmount LCD Monitor with VGA and DVI-D Interface

( 61 Reviews )

$1800.00 $1599.00

Description :

KVMSwitchTech's KVMRMM-102N, 10.4" Dual Rackmount LCD monitor with VGA and DVI-D Video interface allows users to capture and Monitor data. These rackmount lcd drawer units come with industrial grade LCD which provides users crisp and clear image. These LCDs are a cost effective solution and save you valuable Rack space. Rackmount LCD units support simple plug and play functionality.

Add to Cart

Product Features

Dual 10.4” TFT LCD display (1024 x 768 resolution) in 5U (8.75”) of Rack space
Both monitors feature ARGB (Analog RGB 15 PIN VGA) and DVI-D signal inputs
Housed in rugged steel construction with a black powder coat finish
VGA Cables, AC/DC adapter and power cord included
Lexan™ Screen protection available (L) (Optional)

Specifications

Dimensions	19.0" (W) x 8.75" (H) x 2.35" (D) (1.65” (D) behind Rack Mounting rails).
Weight	12 lbs
Power	110 - 240 VAC, 50/60 Hz. 60 watts max
On-Screen Controls	Brightness, Contrast, Horizontal & Vertical Position, Auto Adjust, OSD H & V Position, Input Select Color Temp., Reset.
Plug & Play	DDC1 and DDC2B
Temperature	Operating: 0C to 50C Storage: -20C to 60C
Humidity(Operating)	10 to 90% RH (max)
Input Signal (VGA)	RGB analog video, TTL H & V sync
Input Signal (Digital)	DVI-D Single Link (TDMS)
Input Connectors	Analog 15 pin mini D-Sub / DVI-D
Colors Available	Black
Display Type	Active Matrix TFT LCD
Display area	10.4” Diagonal
Colors Displayed	262K Colors
Contrast Ratio	1200:1 typ
Brightness	500 cd/m2 typ
Viewing Angle	Horizontal: 178 Vertical: 178
Response Time	25ms Typ
Resolution	VGA up to 1024 x 768
Horizontal Frequency	31.5 to 80KHz.
Vertical Frequency	56 to 75 Hz.
Screen Protection(Optional)	Lexan™

View User Manual
