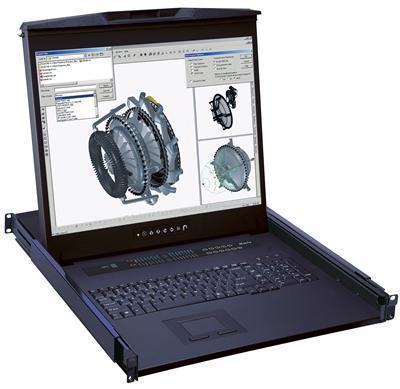

1U 17" Dual Slide WideScreen VGA and DVI-D 1080p High Resolution 1920 x 1080 Rackmount Monitor Keyboard with combo USB and PS2 Interface Touchpad

( 145 Reviews )

$1800.00 $1399.00

Description :

1U 17" Dual Slide WideScreen 1080p High Resolution 1920 x 1080 VGA and DVI-D Rackmount Monitor Keyboard Drawer, RKD-DS-17-WHDE is a combination of Keyboard, VGA and DVI-D Video and touchpad Mouse in 1U Rack drawer. This Dual slide 1080p Rackmount Monitor Keyboard combo is housed on two separate sliding rails which enable the Keyboard/Mouse and monitor to slide independent of each other. This 1080p DVI-D Rackmount LCD Keyboard comes with a combo interface Cable which supports both USB and PS2 Keyboard interface.

Item Number: #RKD-DS-17-WHDE

Add to Cart

Product Features

1U Dual Slide 17" Widescreen LCD console drawer
1920x1080 Native WUXGA Ultra High resolution
Supports Full HD with 1080p resolution
104 Key Keyboard with touchpad
SUN Micro or MAC keyboard options available
Enhanced aesthetics with new model front panel and two point lock
HDMI with Speakers (Optional)
3G /HD/SD-SDI Broadcast-grade input ( Optional )
S-Video + Composite (BNC), HDMI or Audio input ( Optional )
48V, 24V or 12VDC Power ( Optional )

Specifications

LCD Panel
Size (diagonal)	17.1 widescreen TFT
Max resolution	1920 x 1080
Brightness(cd/m2)	400
Backlight	LED
Color	16.7 M, 8-bit
Contract ratio (typ)	600:1
Viewing Angle (H/V)	160^o X 140^o
Active area(mm)	382 x 215
MTBF (hrs)	20,000
Signal input	VGA or DVI-D
Casing Color	Black (RAL 9005)
Weight
Net	12 kgs (26.4 lbs)
Gross	18 kgs (39.6 lbs)
Environmental
Operating	0 to 50^o C Degree
Storage	-5 to 60^o C Degree
Relative humidity	5~90%, Non-condensing
Shock	10G Acceleration (11ms duration)
Vibration	5~500Hz 1G RMS random
Regulatory
Safety	FCC & CE certified
Environmental	RoHS2 & REACH compliant
Power
Input	Auto-sensing 100 to 240VAC,50 / 60Hz
Consumption	Max. 48 Watt, Standby 5 Watt
Dimensions
Product	441.6 x 650 x 44 mm / 17.4 x 25.6 x 1.73 inch
Packing	595 x 860 x 140 mm / 23.4 x 33.9 x 5.5 inch
Console Cable

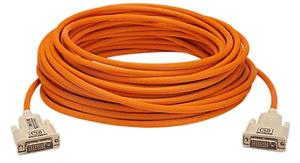

DVI-D Combo Cable Option
6 feet DVI-D consol cable (bundle)	DVI-D + USB, server end DVI-D + DB15 (USB KB & MS), console port
VGA Combo Cable Option
6 feet VGA console cable (alternative)	VGA + USB, server end DB15 (VGA, USB KB & MS), console port

View User Manual
