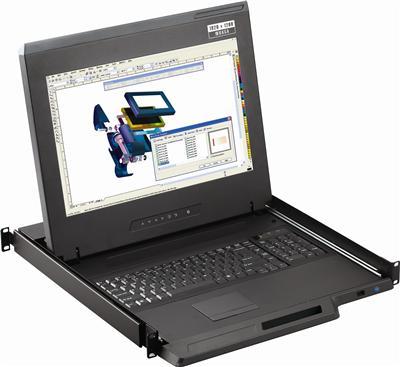

1U 17" DVI-D 1080p 1920 x 1080 Rackmount Monitor Keyboard with 12 Port DVI KVM Switch Touchpad


#RKD-KVM-17-12WHDVI
$2700.00 $1950.00


Description :

1U 17" Ultra High Resolution 1080p 1920 x1080 DVI Rackmount Monitor Keyboard Drawer, RKD-KVM-17-12WHDVI with 12 Port DVI KVM Switch is a combination of Keyboard, DVI-D Single link Video and touchpad Mouse (KVM) in 1U Rack drawer. This DVI Rackmount LCD keyboard  offers users the flexibility to access multiple Servers from one or multiple locations.




Product Features



  • 1U 17" Widescreen LCD console drawer with DVI-D input and 12 Port DVI KVM Switch with Audio
  • Qty 6 DVI USB KVM Switch Cables included. Related cables are at the bottom of the page
  • 1920 x 1080 native Ultra High resolution
  • Support Full HD with 1080p resolution
  • Support Windows 7 / Vista / XP / Linux / Mac OS X
  • 104-Key Keyboard with either touchpad or trackball
  • Enhanced aesthetics with new molded front handle

Specifications

LCD Panel
Size (diagonal)
17.1" TFT
Max resolution
1920 x 1080 (1080p)
Brightness (cd/m2)
210
Backlight
LED

Colors
1.07 Billion, 10-bit
Contrast ratio (typ)
800 : 1
Viewing angle (H/V)
178° x 178°
Active area (mm)
367 x 230
MTBF (hrs)
15,000
Signal input
DVI-D Single Link
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, Non-condensing

Shock
10G Acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Casing Color
Black ( RAL 9005 )
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Dimensions

Product
17.4 x 22.8 x 1.73 inch
Packing
23.4 x 33.9 x 5.5 inch
Weight

Net
33 lbs
Certifications
CE, FCC, RoHS
