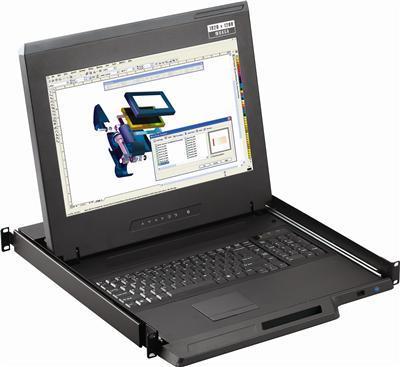

1U 17" DVI-D, HDMI and VGA Ultra High Resolution 1920 x 1200 Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Touchpad

( 136 Reviews )

$2700.00 $2499.00

Description :

1U 17" Ultra High Resolution 1920 x1200 DVI, HDMI and VGA Rackmount Monitor Keyboard Drawer, RKD-KVM-17-HDDVI is a combination of Keyboard, DVI-D and VGA Video and touchpad Mouse (KVM) in 1U Rack drawer. This DVI Rackmount LCD keyboard comes with a combo interface cable which supports both USB and PS2 Keyboard interface.

Add to Cart

Product Features

1U 17" Widescreen LCD console drawer with DVI-D / HDMI/VGA input
1920 x 1200 native WUXGA Ultra High resolution
Support Full HD with 1080p resolution
Support Windows 7 / Vista / XP / Linux / Mac OS X
104-Key Keyboard with either touchpad or trackball
Enhanced aesthetics with new molded front panel and two point lock
3G / HD / SD-SDI Broadcast-grade input (Optional)
S-Video + Composite ( BNC ) & audio input (Optional)
48V, 24V or 12VDC input (Optional)
MIL-Type or lockable connector (Optional)

Specifications

LCD Panel
Size (diagonal)	17.1" TFT
Max resolution	1920 x 1200
Brightness (cd/m2)	210
Backlight	LED
Colors	1.07 Billion, 10-bit
Contrast ratio (typ)	800 : 1
Viewing angle (H/V)	178° x 178°
Active area (mm)	367 x 230
MTBF (hrs)	15,000
Signal input	VGA / DVI-D / HDMI w/Speaker
Environmental
Operating	0 to 50°C Degree
Storage	-5 to 60°C Degree
Relative humidity	5~90%, Non-condensing
Shock	10G acceleration ( 11 ms duration )
Vibration	5~500Hz 1G RMS random vibration
Casing Color	Black ( RAL 9005 )
Power
Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 48 Watt, Standby 5 Watt
Dimensions
Product	17.4 x 18.9 x 1.73 inch
Packing	23.4 x 33.9 x 5.5 inch
Weight
Net	24 lbs
Certifications	CE, FCC, RoHS

View User Manual
