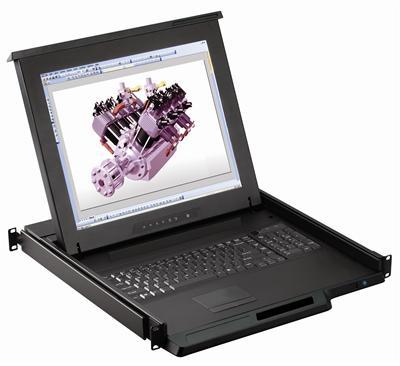

1U 17" Shallow Depth HDMI Rackmount LCD Monitor Drawer


$1299.00 $1081.00


Description :

1U 17" Shallow Depth HDMI Rackmount LCD Monitor Drawer, RKMTL-1USD-17HDMI also referred to as HDMI shallow depth 1U LCD is a flip up Monitor in 1U Drawer. This Rack LCD unit saves space for your Rack environment. These LCDs support simple plug and play functionality and do not require any additional software. This TFT Rackmount monitor allows for viewing and monitoring of data even through closed glass doors. 1U Rack mount LCD Monitor units come with an industrial grade LCD panel.




Product Features



  • HDMI video
  • Short Depth design - 18.9 inches(480mm)
  • 1U Rackmount LCD with 17" Samsung TFT Panel
  • Allows for viewing and monitoring of data even through closed glass doors
  • Enhanced aesthetics with new molded front panel and two point lock
  • One Man Installation slides for quick and easy installation
  • Panel button controls
  • Unique mechanical design to maximize Rack mountable space
  • Light weight construction
  • Built in on screen display (OSD)



Specifications

LCD
Industrial Grade Samsung LCD Panel
Max Resolution
1280 x 1024
Brightness (cd/m²)
300
Color Support
16.7 m
Contrast Ratio (typ.)
1000:1
Viewing Angle (H/V)
160° x 160°
Display Area (mm)
338 x 270
Tr Response Time (ms)
1.3
LCD Panel MTBF (hrs)
50,000
Plug & Play DDC
EDID 1.3
Power Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Max 48 Watts, Standby 5 Watts
Regulatory Approvals
FCC, CE
Environmental
Operation
0° to 50°C Degree
Storage
-5° to 60°C Degree
Relative Humidity
5-90%, Non-condensing
Shock
10G Acceleration (11ms duration)
Vibration
5-500Hz 1G RMS Random vibration
Dimensions
Product (WXDXH)
17.6 x 18.9 x 1.73 inches
Packaging (WXDXH)
22.9 x 29.7 x 6.8 inches
Weight

Net
26 lbs
Gross
37 lbs
Additional Options
Graphic Input
HDMI, DVI-D, BNC, S-Video & Quad display input
DC Power
DC Power input with 12V, 24V, 48V selection
Touchscreen Options
Resistive and Capacitive (USB or Serial)
Audio
3.5mm audio plug
NEMA 4 / IP65
4mm thickness of protective glass
