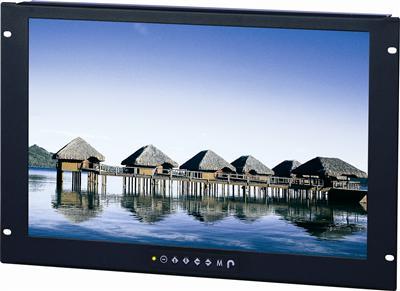

1U 17" Widescreen 1080p High Resolution 1920 x 1080 Rackmount LCD Monitor with HDMI and VGA Connectors

( 102 Reviews )

$2100.00 $1899.00

Description :

1U 17" WideScreen 1080p High Resolution 1920x1080 Rackmount LCD, RKMTL-1U-17-HDV also referred to as 1U LCD is a flip up Monitor in 1U Drawer. This Rack lcd unit saves space for your Rack environment. These LCDs support simple plug and play functionality and do not require any additional software. This RKMTL-1U-17-HDV, TFT Rackmount LCD Monitor allows for viewing and monitoring of data even through closed glass doors. 1U Rack Mount LCD monitor units come with an industrial grade LCD panel.

Add to Cart

Product Features

1U Rackmount 17" Widescreen LCD
1920 x 1080 Native high resolution
Support full HD with 1080p resolution
Green LED-backlit panel technology
1.07 Billion true colors, 10-bit
Built-in HDMI and VGA Connectors
3G / HD / SD-SDI Broadcast-grade input (Optional)
17" Touchscreen : Capacitive, Resistive (Optional)
48V, 24V or 12VDC input (Optional)
MIL-Type or lockable connector (Optional)

Specifications

LCD Panel
Size (diagonal)	17.3" TFT
Max resolution	1920 x 1080
Brightness (cd/m2)	400
Backlight	LED
Colors	16.7 Million, 8-bit
Contrast ratio (typ)	600 : 1
Viewing Angle (H/V)	160° x 140°
Active area (mm)	382 x 215
MTBF (hrs)	20,000
Signal input	HDMI / VGA
Environmental
Operating	0 to 50°C Degree
Storage	-5 to 60°C Degree
Relative humidity	5~90%, Non-condensing
Shock	10G Acceleration ( 11 ms duration )
Vibration	5~500Hz 1G RMS Random Vibration
Casing Color	Black front panel ( RAL 9005 ) Dark grey rear case ( RAL 7037 )
Power
Input	Auto-Sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 48 Watt, standby 5 watt
Dimensions
Product	17.4 x 20.9 x 1.73 inches
Packing	27 x 23.2 x 4.7 inches
Weight
Net	26 lbs
Certifications	CE, FCC, RoHS

View User Manual
