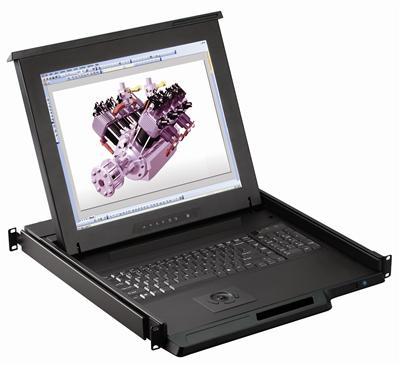

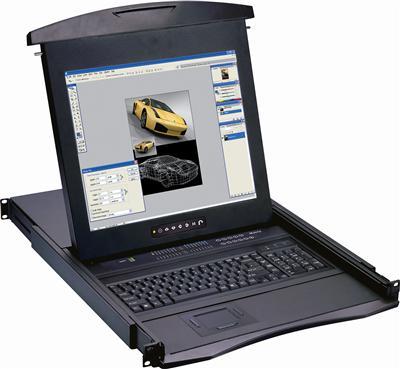

1U 17" WideScreen VGA and HDMI 1080p High Resolution 1920 x 1080 Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Touchpad


#RKD-KVM-17-WHDE
$1800.00 $1599.00


Description :

1U 17" WideScreen 1080p High Resolution 1920 x 1080 VGA and HDMI Rackmount Monitor Keyboard Drawer, RKD-KVM-17-WHDE is a combination of Keyboard, VGA and DVI-D Video and touchpad Mouse (KVM) in 1U Rack drawer. This 1080p Rackmount LCD Keyboard  comes with a combo interface Cable which supports both USB and PS2 Keyboard interface.

1U 17 WideScreen HDMI and DVI-D 1080p High Resolution 1920 x 1080 Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Touchpad




Product Features



  • 1U 17" Widescreen LCD console drawer with VGA and HDMI inputs
  • Mac and Sun Keyboard options available with hot Key support
  • Support full HD with 1080p resolution
  • Short depth design 480 mm (18.9 Inches) deep
  • 104-Key Keyboard with either touchpad or trackball
  • New Enhanced aesthetics with molded front handle
  • HDMI with Speakers (Optional)
  • 3G / HD / SD-SDI Broadcast-grade input (Optional)
  • S-Video + Composite ( BNC ) & Audio input (Optional)
  • 48V, 24V or 12VDC input (Optional)
  • MIL-Type or lockable connector (Optional)

Specifications

LCD Panel
Size (diagonal)
17.1" TFT
Max resolution
1920 x 1080
Brightness (cd/m2)
400
Backlight
LED

Colors
16.7 Million, 8-bit
Contrast ratio (typ)
600 : 1
Viewing angle (H/V)
160° x 140°
Active area (mm)
382 x 215
MTBF (hrs)
50,000
Signal input
VGA  | HDMI
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, Non-Condensing

Shock
10G Acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS Random Vibration
Casing Color
Black ( RAL 9005 )
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Dimensions

Product
17.4 x 18.9 x 1.73 inch
Packing
23.4 x 33.9 x 5.5 inch
Weight

Net
24 lbs
Certifications
CE, FCC, RoHS
