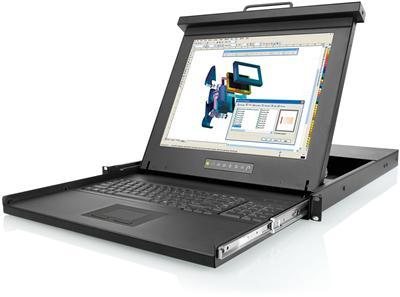

1U 19" Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Touchpad

( 82 Reviews )

$1800.00 $1499.00

Description :

Rackmount Monitor Keyboard is a combination of Keyboard, Video and touchpad Mouse (KVM) in 1U Rack drawer. This KVM Drawer unit comes with a combo interface cable which supports both USB and PS2 keyboard interface.

Item Number: #NRKD-KVM-19

Add to Cart

Product Features

1U Rackmount Monitor Keyboard with 19” LCD
Built in Keyboard, touchpad and Samsung LCD
Touchpad Keyboard with combo cable for USB or PS2 and VGA 15 Pin HD video
Multiple keyboard language selections
Enhanced aesthetics with new molded front panel and two point lock
Adjustable mounting brackets for various rack depths
Slide rails with fixed positions to prevent drawer movement when typing
Optional Mounting hardware available for two post Telco style racks
104 key notepad keyboard with full numerical pad
One Man installation slides for easy, quick installation
Multi lingual on screen display menu
12, 24 and 48 volt DC power options available

Specifications

Environmental
Operating Temperature	0° to 50°C Degree
Storage Temperature	-5° to 65°C Degree
Relative Humidity	5-90%, non-condensing
Shock	10G acceleration (11ms duration)
Vibration	5~500Hz 1G RMS random vibration
LCD	Samsung LCD Panel
Diagonal Size	19" TFT LCD
Max. Resolution	1280 x 1024
Brightness (cd/m²)	250
Color Support	16.7 Mil
Contrast Ratio(Typ)	1000:1
Viewing Angle (H/V)	160° x 160°
Display Area (mm)	376 x 301
Tr Response Time (ms)	1.3
VGA Signal	Input Analog RGB, 0.7Vp-p
Sync. Type	Separate H/V, Composite, SOG
Plug and Play DDC	EDID 1.3
External Connection
Power Input	Auto sensing 100 to 240VAC, 50 / 60Hz via IEC connector
Video Input	VGA 15-pin connector
Dimensions
Product (WXDXH)	17.4 x 19.7 x 1.75 inches
Packaging (WXDXH)	23.6 x 30.3 x 7.1 inches
Weight
Net	35lbs
Gross	48lbs
Certifications	CE, FCC, & RoHS
