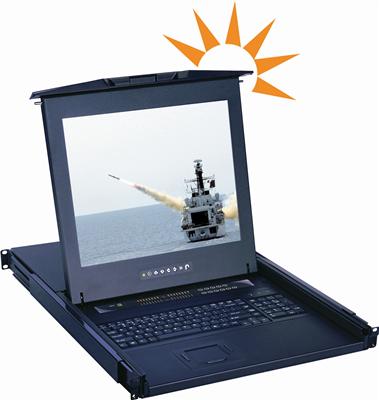

1U 19" WideScreen HDMI and VGA 1080p High Resolution 1920 x 1080 Rackmount Console Drawer with USB Interface Touchpad
#RKD-KVM-19-WHDE
$2100.00
$1799.00
The 1U 19" Widescreen 1080p Rackmount Console Drawer, model RKD-KVM-19-WHDE, features a high-resolution 1920 x 1080 display with HDMI and VGA inputs. This console drawer integrates a keyboard, VGA and HDMI video interfaces, and a touchpad mouse (KVM) into a single 1U rack unit. It includes a USB keyboard interface for easy connectivity.
Features
1U 19" FHD LCD console drawer
1920 x 1080 native resolution / 16.7M colors
HDMI 1.4 + VGA video input (speakers excluded )
104-key USB keyboard with touchpad
Short depth design of 460mm
One Man installation design
Enhanced aesthetics with new molded front panel and 2-point lock
2 post rack mounting available
FCC, CE, CE / LVD, UKCA, REACH, RoHS3, WEEE Certified
2-year standard warranty ( upgradable up to 5 years )
Options
Dual stereo speakers for HDMI ( HS4.4 )
DP 1.0 + Speakers ( DP )
DVI-D + Audio input & output + Speakers ( DV4.4 )
Composite + Audio IN + Speakers ( BNC )
3G / HD / SD-SDI Broadcast-grade input + Speakers ( SDI )
Front USB hub port for device access ( USB )
DC power : 12V / 24V / 48V / 125V / 250V
SUN Micro keyboard option
Specifications:
| Mechanical | |||||||
| Product Dimensions (H x W x D) |
|
||||||
| Package Dimensions (H x W x D) |
|
||||||
| Net Weight |
|
||||||
| Gross Weight |
|
||||||
| Mounting Distance |
|
||||||
| Console Ports | |||||||
| Video Input | VGA + HDMI single link | ||||||
| Video Option | HDMI 1.4 / HDCP 1.4 | ||||||
| KB / MS | USB Interface | ||||||
| VGA console 6ft cable (CB-6A) --OR-- HDMI console 6ft cable (CX-6A) |
|
||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 18.5" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 1920 x 1080 | ||||||
| Brightness (cd/m2) | 350 | ||||||
| Colors | 16.7 M, 8-bit | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 89/89/89/89 | ||||||
| Viewing angle (H x V) | 160° x 140° | ||||||
| Response time ( ms ) | 20 | ||||||
| Dot pitch ( mm ) | 0.213 | ||||||
| Display area ( mm ) | 408.98H x 230.04V | ||||||
| Surface treatment | Anti-glare, Hard-coating | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 50,000 | ||||||
| Audio Option | |||||||
| Speaker | 2x 2W (Dual Stereo) | ||||||
| Input Connector | 3.5mm stereo jack | ||||||
| Input Impedance / Power level | 30Ω / 750mV | ||||||
| Output Connector | 3.5mm stereo jack | ||||||
| Output Impedance / Power level | 30Ω / 2.8V | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption (Single Console / with KVM) |
|
||||||
| Environmental | |||||||
| Operating Temperature | -20 to 70°C Degree | ||||||
| Storage Temperature | -20 to 70°C Degree | ||||||
| Operating Humidity | 10~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC, CE | ||||||
| Safety | CE / LVD & UKCA certified | ||||||
| Environment | RoHS3 /WEEE & REACH compliant |
