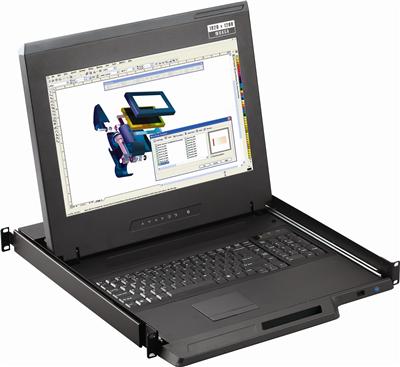

1U 20" Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Touchpad

( 82 Reviews )

$2100.00 $1928.00

Description :

Rackmount Monitor Keyboard is a combination of Keyboard, Video and touchpad or trackball Mouse (KVM) in 1U Rack drawer. This KVM Drawer unit comes with a combo interface cable which supports both USB and PS2 keyboard interface.

Item Number: #RKD-KVM-20

Add to Cart

Product Features

1U rackmount LCD Keyboard with 20” LCD
Built in keyboard, touchpad, and Samsung LCD
Touchpad keyboard with combo cable for USB or PS2 and VGA 15 Pin HD video
Multiple keyboard language selections
Enhanced aesthetics with new molded front panel and two point lock
Adjustable mounting brackets for various rack depths
Slide rails with fixed positions to prevent drawer movement when typing
Optional mounting hardware available for two post Telco style racks
104 key notepad keyboard with full numerical pad
One Man installation slides for easy, quick installation
Multi lingual on screen display menu
12, 24 and 48 volt DC Power options available

Specifications

Environmental
Operating Temperature	0° to 50°C Degree
Storage Temperature	-5° to 65°C Degree
Relative Humidity	5-90%, non-condensing
Shock	10G acceleration (11ms duration)
Vibration	5~500Hz 1G RMS random vibration
LCD	Samsung LCD Panel
Diagonal Size	20" TFT LCD
Max. Resolution	1600 x 1200
Brightness (cd/m²)	300
Color Support	16.7 Mil
Contrast Ratio(Typ)	800:1
Viewing Angle (H/V)	178° x 178°
Display Area (mm)	408 x 306
Tr Response Time (ms)	7
VGA Signal	Input Analog RGB, 0.7Vp-p
Sync. Type	Separate H/V, Composite, SOG
Plug and Play DDC	EDID 1.3
External Connection
Power Input	Auto sensing 100 to 240VAC, 50 / 60Hz via IEC connector
Video Input	VGA 15-Pin Connector
Dimensions
Product (WXDXH)	17.4 x 25.6 x 1.75 inches
Packaging (WXDXH)	23.6 x 30.3 x 7.1 inches
Weight
Net	44lbs
Gross	57lbs
Certifications	CE, FCC, & RoHS
