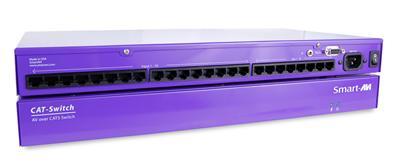

CAT5 Video Matrix Switch with audio 16 inputs and 8 outputs CSW16X08S


#CSW16X08S
$3999.00 $2832.00


Description :



Cat5 Matrix Switch, also referred to as Cat5 Video Matrix, enables users to switch VGA/ S-Video/ Composite video/ Component Video and audio from up to sixteen devices to Sixteen monitors or remote displays with compatible outputs. This Cat5 Video Matrix Switch extends video over cat5/ca6 cable. The distance between devices and displays can be up to 300 meters (1000ft). These units are available in 8x8, 16x8, and 16x16 configurations .The Cat5 Video matrix can be controlled with PC software, infra red remote control, RS232 control, or TCP/IP access. This Cat5 Audio/Video Matrix offers the flexibility to switch the same input to all the outputs, or different inputs to different outputs. Please note VGA inputs can only be displayed on VGA monitors, and Component/Composite/S-Video inputs can only be displayed on monitors with compatible outputs. This Cat5 Video Matrix Switch supports high video resolution (up to 1900x1200), is HDTV compatible (720i, 720p, 1080p), has integrated UTP video distribution, 1U Rackmount enclosure, built in power surge, instantaneous switching, and high video bandwidth.

CAT5 VIDEO MATRIX RECEIVERS SOLD SEPARATE (PLEASE SEE BELOW)






Product Features



  • Supports high resolution Video up to 1920x1200
  • High quality audio switching
  • RS232 control
  • Optional Infrared and TCP/IP control
  • PC windows software control
  • Integral UTP distribution
  • 1U Rackmounted chassis available
  • Uses easy to install, inexpensive CAT5/5e/6/7/8
  • Maximum extension of 1000 feet between the local and remote units
  • HDTV compatible (720p, 1080i,1080p)
  • 300 MHz bandwidth
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / Polarity Preservation
  • Compatible with Line Level Stereo Audio Signals
  • High ground loop immunity
  • Built-in power surge and transient protection
  • Designated trimmer in the remote unit to compensate for length


Specifications



Video Data
Bandwidth 250MHz
Input signal level 1Volt pk-pk into 75R
Output impedance 100 Ohms
Input Impedance 75R Ohms
Connector RJ45
Format VGA/SVGA/XGA/RGB
Audio
Bandwidth 20KHz
Signal level 0dB
Output Impedance 100 Ohms
Input Impedance 10K Ohms
Input Connector VIA RJ45
Syncs
Bandwidth Digital
Signal level 5V
Output Impedance 100 Ohms
Input Impedance 10K Ohms
Input Connector HD15 socket
Cat5 Signals
Pair 1 Red Video balanced 1 V pk-pk + audio left
Pair 2 Green Video balanced 1 V pk-pk + audio right

Pair 3
Blue Video balanced 1 V pk-pk + sync
Pair 4 Data RS232 and IR
Control
IR Remote Unit
RS232 Software
Power
Voltage 90-230V
Connector IEC
Fuse rating 1A A/S
Frequency 50/60 Hz
Mechanical
Height 5.23 in (133 mm)
Width 19 in (483 mm)
Depth 18 in (450 mm)
Weight 22 lbs (10 kg)
