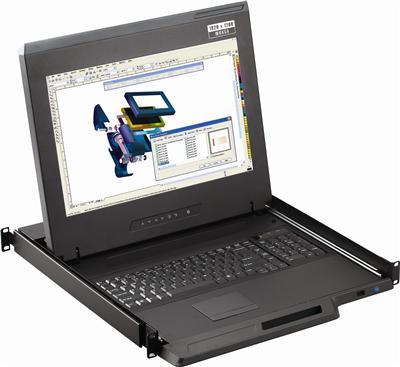

L-120e Cyberview 1U 20" Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Touchpad


#L-120e
$2100.00 $1904.00

Description :

L-120e Cyberview 1U 20" Rackmount Monitor Keyboard is a combination of Keyboard, Video and touchpad Mouse (KVM) in 1U rack drawer. This KVM Drawer unit comes with a combo interface cable which supports both USB and PS2 Keyboard interface.



Item Number: #L-120e


Product Features



  • Ultra High resolution 1600 x 1200
  • Mix PS/2 USB & SUN with Multi-Platform switch capability
  • 1U Rackmount drawer with 20" LCD
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Multiple Keyboard language selections with 2 button touchpad
  • Enhanced aesthetics with new molded front panel and two point lock


Specifications

Environmental
Operating Temperature
0° to 50°C Degree
Storage Temperature
-5° to 65°C Degree
Relative Humidity
5-90%, non-condensing
Shock
10G acceleration (11ms duration)
Vibration
5~500Hz 1G RMS random vibration
LCD
Samsung LCD Panel
Diagonal Size
20" TFT LCD
Max. Resolution
1600 x 1200
Brightness (cd/m²)
300
Color Support
16.7 Mil
Contrast Ratio(Typ)
800:1
Viewing Angle (H/V)
178° x 178°
Display Area (mm)
408 x 306
Tr Response Time (ms)
7
VGA Signal
Input Analog RGB, 0.7Vp-p
Sync. Type
Separate H/V, Composite, SOG
Plug and Play DDC
EDID 1.3
External Connection
Power Input
Auto sensing 100 to 240VAC, 50 / 60Hz via IEC connector
Video Input
VGA 15-pin connector
Dimensions

Product (WXDXH)
17.4 x 25.6 x 1.75 inches
Packaging (WXDXH)
23.6 x 30.3 x 7.1 inches
Weight

Net
44lbs
Gross
57lbs
Certifications
CE, FCC, & RoHS
