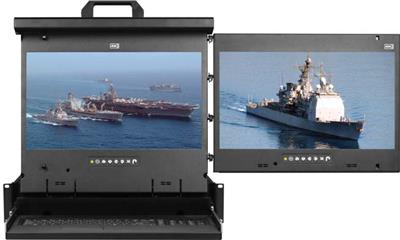

MRK-K17e-2R Cyberview 2U 17" Dual Display Center and Right Display Port 3840 x 2160 Rackmount Console Drawer Touchpad

( 117 Reviews )

$6300.00 $5575.00

Description :

Austin Hughes Cyberview MRK-K17e-2R 2U 17" Dual Display right hinged mount High Resolution 3840 x 2160 Rackmount Monitor Keyboard Console Drawer is a combination of Keyboard, Display Port Video and touchpad Mouse (KVM) in 2U Rack drawer. This Rackmount LCD Keyboard comes with a combo interface cable which supports both USB and PS2 Keyboard interface. MRK-K17e-2R units are specifically designed for Command and Control Centers for side by side display applications.To ensure chassis ruggedness, mobility and quality, as well as being suitable for harsh environment applications, the MRK-K17e-2R console drawer is meticulously constructed by our team of experts in our own CNC facilities for such applications.

Add to Cart

Description
Reviews (2)

Product Features

Cyberview MRK-K17e-2R 2U 17" widescreen LCD console drawer with Display Port inputs per display
Rugged construction for mobility & durability
Fits 24" ~ 36" rack via adjustable mounting brackets
4K UHD (3840 x 2160) native resolution / 1920 x 1080 & 1920 x 1200 resolution support
104-key Keyboard with Touchpad
2-Year standard warranty (upgradable up to 5 years)
HDMI with Speakers (Optional)
3G / HD / SD-SDI Broadcast-grade input (Optional)
Front USB hub port for device access (Optional)
48V, 24V or 12VDC input (Optional)
Sunlight Readable LCD for 17" FHD & 19” 4:3 (Optional)

Specifications

LCD Panel
Size (diagonal)	17.3" TFT
Max resolution	1920 x 1080
Brightness (cd/m2)	300
Backlight	LED
Colors	16.7 M, 8-bit
Contrast ratio (typ)	1000 : 1
Viewing angle (L/R/U/D H/V)	89/89/89/89
Display area (mm)	381.888H x 214.812V
MTBF (hrs)	50,000
Signal input	DisplayPort 1.2 / HDCP 1.3
Environmental
Operating	0 to 55°C Degree
Storage	-20 to 60°C Degree
Relative humidity	5~90%, Non-condensing
Shock	10G acceleration (11 ms duration )
Vibration	10~300Hz 0.5G RMS random vibration
Operating Altitude / Non Operating Altitude	16,000ft / 40,000ft
Power
Input	Auto-Sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 38 Watt, Standby 5 Watt
Dimensions
Product	17.4 x 21.7 x 3.5 inch
Packing	22.8 x 26.9 x 7.8 inch
Weight
Net	46.2 lbs
Certifications	CE, FCC, RoHS2, Reach Compliant
