- Ultra high resolution 1280 x 1024
- Mix PS/2, USB & SUN with Multi-Platform switch capability

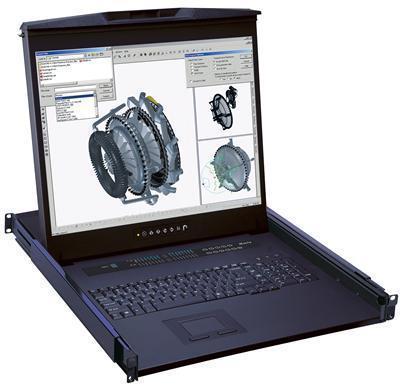

- 1U rackmount drawer with 19" LCD
- Combo interface either PS/2 or USB input to the LCD drawer
- Multiple keyboard language selections with 2 button touchpad module
- Enhanced aesthetics with new molded front panel and two point lock
- Secure IP remote user access across the world wide web
- Efficient system management with simultaneous multi-user access
- Capable of connecting 32 servers per device in 1U
- Support DVI-USB, VGA-USB & VGA-PS/2 server interface
- Up to 40 meters between your server & KVM switch
- Enhanced Cat6 cable management with remote access over 300m
- Provide a diversity of consoles to access servers independently and simultaneously
- Use of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
- Greater distances between your switch and servers allow enhanced data centre rack layouts
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
Specifications
|
Environmental
|
|
Operating Temperature
|
: 0 to 50°C / -5 to 60°C
|
|
Relative humidity
|
90%, non-condensing
|
|
Shock
|
50G peak acceleration ( 11 ms, half-sine wave )
|
|
Vibration
|
58~100Hz / 0.98G ( 11 ms/ cycle)
|
|
LCD
|
Samsung LCD Panel
|
|
4:3 Screen Size
|
19"
|
|
Display Type
|
Active Matrix TFT
|
|
Native Resolution
|
1280 x 1024
|
|
Brightness (cd/m2)
|
250
|
|
Contrast Ratio
|
1000 : 1
|
|
Viewing Angle (H x V)
|
160 / 160
|
|
Display Color
|
16.7M
|
|
Response Time
|
Tr=1 / Tf=4
|
|
Pixel Pitch (H x V)
|
0.255 / 0.255
|
|
KVM Port
|
32 x RJ45 connector
|
|
KVM Dongle
|
DVI-D / VGA connector dongle up to 40 meters (132 feet) Cat6 / Cat5 cable
|
|
Simultaneous Console Access
|
Local : 1 x DB-15 VGA (up to 1280 x 1024)
2 x USB for KB & MS
Remote ( 1 or 2 ) : 1 x RJ45, up to 300 meters (1000 feet) Cat6 / Cat5 cable
IP Access ( 1 or 2 ) : 1 x RJ45 Ethernet, 1 x DB-9 serial & 1 x USB port
IP Security : SSL v3, RSA, AES, CSR, http & https internet access
15-user login ( 1 x active user )
|
|
Remote Receiver ( 1, 2)
|
1 x DB-15 VGA (up to 1280 x 1024), 2 x USB for KB & MS
1 x KVM port for connecting an extra PC
|
|
Expansion
|
Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers
|
|
Compatibility
|
Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server
Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
|
|
Power
|
100~240VAC, 50 / 60Hz 0.5A via AC / DC cord
|
|
Cables Included
|
None
|
|
Mechanical
|
|
Height
|
1.75 in.
|
|
Width
|
17.4 in.
|
|
Depth
|
19.7 in.
|
|
Weight
|
48 lbs.
|
|
