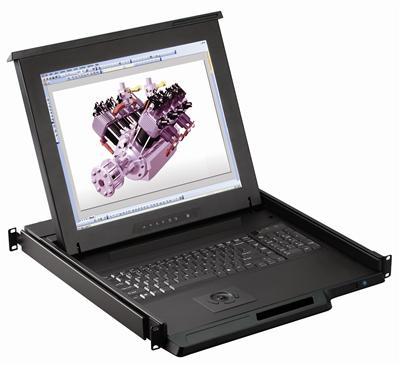

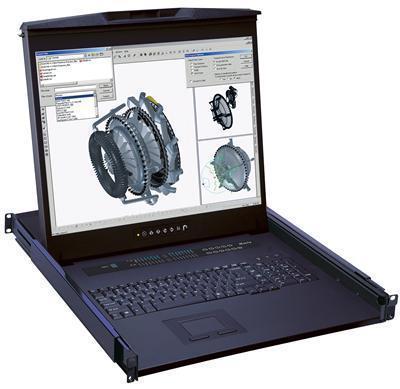

RKP119-U802e Cyberview 1U 19" Rack Monitor Touchpad With Integrated 8 Port Combo PS2 AND USB CAT6 KVM Switch

( 108 Reviews )

$2400.00 $2154.00

RKP119-U802e Cyberview Rack Monitor Keyboard with PS2 and USB combo KVM Switch is a combination of keyboard, video and touchpad mouse (KVM) in 1U rack drawer. The integrated Combo Cat6 KVM supports VGA/PS2, VGA/USB, and DVI/USB interfaces at distances up to 130ft over Cat6 cable with the associated dongle. This 2-console unit allows 1 local and 1 remote user. See associated dongles below..

Add to Cart

Description
Reviews (5)

Product Features

Rack Monitor with 8 Port combo PS2 and USB KVM Over CAT6 Switch in 1U
2-console (1 remote, 1 local user)
Cost efficient Combo KVM integration
"One Man" installation slides for easy, quick installation
Mix PS/2 USB & SUN with Multi-Platform switch capability
Multiple keyboard language selection with touchpad
Side rails with fixed positions to prevent drawer movement when typing
Enhanced aesthetics with new molded front panel and two point lock

Specifications
LCD Panel
Manufacturer :	AUO
Size (diagonal) :	17" TFT
Max resolution :	1280 x 1024
Brightness (cd/m2) :	250
Backlight :	LED
Colors :	16.7 M
Contrast ratio (typ) :	1000 : 1
Viewing angle (H/V) :	170° x 160°
Active area (mm) :	338 x 270
MTBF (hrs)	30,000

Power Input :	Auto-sensing 100 to 240VAC, 50 / 60Hz

Environmental
Operating temperature :	0 to 55°C degree
Storage temperature :	-20 to 60°C degree
Operating humidity :	20~90%, non-condensing
Storage humidity :	5 ~90%, non-condensing
Operating altitude :	16,000 ft
Non-operating altitude :	40,000 ft
Shock :	10G acceleration ( 11ms duration )
Vibration :	5~500Hz 1G RMS random vibration

Regulatory
Safety :	cUL, FCC & CE certified
Environmental :	RoHS2 & REACH compliant

Product Dimensions	441.6 x 580 x 44 mm / 17.4 x 22.8 x 1.73 inch
Weight	44 lbs
