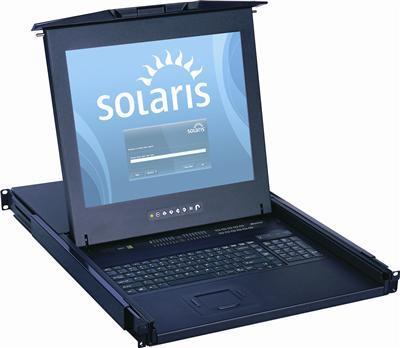

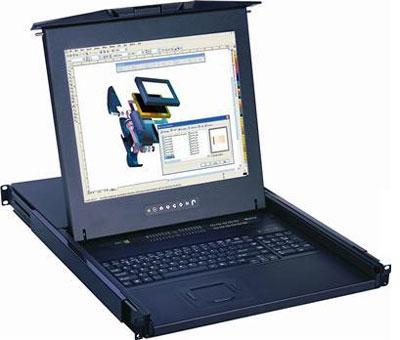

S117-S1601b Cyberview 1U 17" Solaris Rackmount Monitor Keyboard Drawer with 16 Port USB KVM Switch Trackball

( 108 Reviews )

$2100.00 $1925.00

Description :

Austin Hughes S117-S1601b Cyberview Solaris Rackmount Monitor with 16 port USB KVM Switch is a combination of USB Keyboard, Video and touchpad or trackball mouse (KVM) in 1U drawer. This Solaris Rackmount LCD Keyboard drawer with KVM Switch is a cost effective solution and supports native sun resolution 1152 x 900. These SUN Rackmount Keyboard LCD units are used for a wide range of government, military, surveillance and commercial applications.

Add to Cart

Product Features

6FT KVM CABLES INCLUDED- QTY 16
1U Solaris Rackmount Monitor keyboard with USB KVM Switch combo
Supports SUN/SOLARIS keys including stop, paste, compose, cut
US and UK keyboard language selections
Touchpad or trackball mouse options
Enhanced aesthetics with new molded front panel and two point lock
Slide rails with fixed positions to prevent drawer movement when typing

Solaris Rack Monitor with USB KVM Switch

Cascade KVM Switches to control up to 128 servers
Built-in microprocessor emulation for each port boots up process
Name servers up to 16 characters long
Scan Mode – Monitor servers at intervals 5 to 99 seconds
Password protection
Multi-platform support enables users to mix PCs, SUN Microsystems, IBMs, HPs, Compaq and Dell Servers

Integrated KVM Switch Options

PS2 KVM Switch, USB KVM Switch, Cat5e/Cat6 KVM Switch, IP KVM Switch and Matrix KVM Switch
Rackmount Keyboard with integrated KVM Switch offers Multi-Platform switching capability
Cost efficient Combo KVM integration
Secure remote user access (KVM Switch with TCP/IP Functionality)

Specifications

LCD	17" Samsung Rackmount Monitor
Resolution	1152 x 900 (Direct)/1280 x 1024 (Native)
Brightness (cd/m²)	300
Color Support	16.2 Mil
Contrast Ratio(Typ)	700:1
Viewing Angle (H/V)	150° x 135°
Display Area (mm)	337 x 270
Tr Response Time (ms)	2
Resolution	640 x 350, 70Hz, 720 x 400, 70Hz, 640 x 480, 60 / 72 / 75Hz, 800 x 600, 60 / 70 / 72 / 75Hz, 1024 x 768, 60 / 70 / 72/ 75Hz, 1152 x 864, 60 / 70 /75Hz, 1152 x 900, 66 / 76Hz, 1280 x 1024, 60 / 70 /75Hz
Plug & Play DDC	EDID 1.3
Power Input	Auto-Sensing 100 to 240VAC, 50 / 60Hz
Power Consumption	Max 40Watts, Standby 5 Watts
Environmental
Operation	0° to 50°C Degree
Storage	-5° to 65°C Degree
Relative Humidity	5~90%, Non-condensing
Shock	10G acceleration (11ms duration)
Vibration	5~500Hz 1G RMS random vibration
Dimensions
Product (WXDXH)	17.4 x 25.6 x 1.75 inches
Packaging (WXDXH)	23.6 x 30.3 x 7.1 inches
Weight
Net/Gross	33lbs/46lbs
Certifications	FCC, CE, and ROHS
