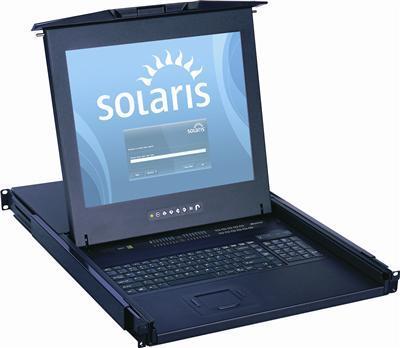

- Solaris Rackmount Monitor with integrated 8 Port USB KVM switch in 1U
- Cost efficient Combo KVM integration
- Direct support for SUN Micro 1152 x 900 native resolution
- "One Man" installation slides for easy quick installation
- Mix PS/2 USB & SUN with Multi-Platform switch capability
- Secure Remote user access across the world wide web
- 1U Rackmount drawer with 17" LCD
- Combo interface either PS/2 or USB input to the LCD drawer
- SUN Key support including Stop, Cut, Paste, Compose etc
- US and UK keyboard language selections with either touchpad or trackball
- Slide rails with fixed positions to prevent drawer movement when trying
- Enhanced aesthetic with new molded front panel and two point lock
Specifications
|
LCD
|
17" Samsung Rackmount Monitor
|
|
Resolution
|
1152 x 900 (Direct)/1280 x 1024 (Native)
|
|
Brightness (cd/m²)
|
300
|
|
Color Support
|
16.2 Mil
|
|
Contrast Ratio(Typ)
|
700:1
|
|
Viewing Angle (H/V)
|
150° x 135°
|
|
Display Area (mm)
|
337 x 270
|
|
Tr Response Time (ms)
|
2
|
|
Resolution
|
640 x 350, 70Hz, 720 x 400, 70Hz, 640 x 480, 60 / 72 / 75Hz,
800 x 600, 60 / 70 / 72 / 75Hz, 1024 x 768, 60 / 70 / 72/ 75Hz,
1152 x 864, 60 / 70 /75Hz, 1152 x 900, 66 / 76Hz, 1280 x 1024, 60 / 70 /75Hz |
|
Plug & Play DDC
|
EDID 1.3
|
|
Power Input
|
Auto-sensing 100 to 240VAC, 50 / 60Hz
|
|
Power Consumption
|
Max 40Watts, Standby 5 Watts
|
|
Environmental
|
|
Operation
|
0° to 50°C Degree
|
|
Storage
|
-5° to 65°C Degree
|
|
Relative Humidity
|
5~90%, non-condensing
|
|
Shock
|
10G acceleration (11ms duration)
|
|
Vibration
|
5~500Hz 1G RMS random vibration
|
|
Dimensions
|
|
Product (WXDXH)
|
17.4 x 25.6 x 1.75 inches
|
|
Packaging (WXDXH)
|
23.6 x 30.3 x 7.1 inches
|
|
Weight
|
|
Net/Gross
|
33lbs/46lbs
|
|
Certifications
|
FCC, CE, and ROHS
|
|
