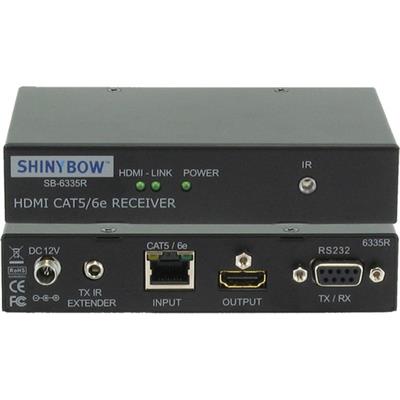

SB-6335R Shinybow HDBaseT HDMI Extender Receiver up to 330ft

( 60 Reviews )

#SB-6335R

$399.00 $311.00

Description :

The Shinybow HDBaseT HDMI Extender Receiver , SB-6335R is an HDMI Version 1.4 Receiver that supports all the latest audio formats such as Dolby True HD, DTS-master, etc… and all seven (7) types of 3D. This HDBaseT HDMI Extender CAT5/5e/6/7 Receiver (Transmitter sold separately) is designed using technology which allows full 3D at 1080p up to 330 feet. The SB-6335R not only supports High definition Video and audio but also IR and RS-232. Front panel LED status display indicates a valid HDMI source, connection between the Receiver and Transmitter and Power. Built-in mounting tabs for surface mounting. Also supports DVI with use of an external adapter (not included). Note that DVI does not support audio.

Add to Cart

Description
Reviews (4)

Product Features

HDMI Over CAT5/5e/6/7 receiver
HDMI Digital Video/Audio and Video TMDS format with HDCP compliant and supports HDBaseT specifications
Supports all latest Audio formats such as Dolby True HD, DTS-master, etc…
3D Enabled
Support link via using the CAT5/5e/6/7 UTP/STP cable
Support link speeds of up to 3.4Gbps
Support Digital RGB 36bits HDMI TMDS format deep color
Extension with high quality video 1920x1200
Support HD High Definition full range resolution 408p, 720p 1080i/1080p
Receiver Support IR EXT and RS-232 control Display
Extended Long distance CAT6/7 330 feet (100m), CAT5e 200 feet (75m), CAT5 100 feet (35m)
Surface mountable ready
Easy to install without any adjustments
Power DC input with low power consumption (Full load 480mA)
Power supply using universal power switch DC 12V/1250mA

Specifications

Type of Extender	HDMI signal over CAT5/5e/67 Cable Receiver
Input Video Signals	HDMI with Digital Video (TMDS)/Audio .5~1.0vPP, DDC5Vpp
Video	HDMI and DVI formats for 1920x1200 resolution up to 3.4 Gbps Digital RGB 36bits HDMI TMDS format deep color
Audio	DTS-HD Master Audio Dolby True-HD Dolby Digital Plus, etc..
Support HD Resolution	408p, 720p, 1080i/1080p
Scan Rate Accepted	HDMI Resolution 50Hz and 60Hz
Control Link Series	IR Extend and RS-232 series interface via a PC
IR Infrared Frequency	38Khz
Extend Distance	CAT6/7 330 ft (100m) CAT5e 200 ft (75m) CAT5 100 ft (35m)
Dimensions (LxWxH)	9.45 x 4.72 x 1 in (240 x 120 x 25 mm)
Product Weight	2 lbs
Power Supply	DC12V/2A (consumption 1680mA Max)
Universal Switch Type	50/60Hz, 100~230 VAC
Ships with North American Power Cord
