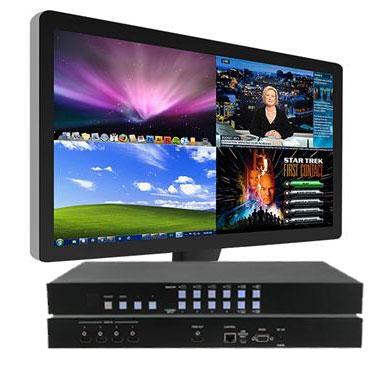

Shinybow SB-3693 8x2 (mirrored) HDMI & VGA Quad-PiP-PoP Selector Switch Scaler w/ Opt. 2nd Modular Output Slot

( 110 Reviews )

#SB-3693

$1954.00 $1536.00

Description :

The SB-3693 is a professional 8x2 HDMI/VGA Quad-PiP-PoP Selector Switch Scaler. Supporting (4) HDMI and (4) VGA/Audio inputs and (1) HDMI, (1) VGA, (1) Composite Video and (1) Audio outputs with Switch, Quad, Picture in Picture (PiP) and Picture of Picture (PoP) features that can be easily configured and controlled. Supports video resolutions up to 1080p with a signal bandwidth of 165MHz (1920x1200) and data rates up to 4.95Gbps with no signal degradation. The SB-3693 is HDMI 1.3 and HDCP 1.2 compliant, with CE and FCC certifications. Zoom management can be selected between (5) levels. Input resolutions can be scaled up to 1080p or down to 480p. The EQ audio output features Audio Equalizer Treble, Surround, Flat, Classic, Rock, Pops, Jazz, 3D and Bass settings. Supports control function keys for Resolution, EDID, Recall, Memory, Volume, Balance, Mute (HDMI audio), A/V (Audio Breakaway) and a modular second output. (6) Different modular boards (optional) can be purchased for the second output slot. Optional cards include signal type: HDMI, HDBaseT™, HDMI&Coax (BNC), HDMI&IP channel (HDMI over ethernet), SDI, Fiber and HDMI&VGA. Control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for switch scaler control (Windows only).

Add to Cart

Description
Reviews (3)

Product Features

(4) HDMI and (4) VGA inputs and (1) HDMI/VGA/VIDEO/Audio Output with Modular output selector switch scaler
Supports Switch, (4) Quad, PiP (Picture in Picture) and PoP (Picture of Picture) features
Link speeds up to 4.95Gbps (link clock rate of 165MHz), HDMI 1.3 and HDCP 1.2 compliant
Digital video TMDS formats for resolutions up to 1080p with Deep color 36bit
Inputs Supported: (4) HDMI, (4) VGA, Audio (480i/p to 1080p)
Outputs Supported:
- (1) HDMI 1080p-60Hz
- (1) VGA
- (1) Composite Video (NTSC/ PAL/ PAL-M/ PAL-Nc)
- (1) Stereo audio (AR/AL). Audio output supports PCM 2ch
External Second Output: (1) Modular card
Zoom management can be selected between (5) levels
Audio Breakaway function allows separate Video and Audio source routing
Supports Audio Volume and Balance ( 0~100 levels) control function
Remembers memory locations up to (8) addresses H1,H2,H3,H4,V1,V2,V3,V4
Mute function to mute HDMI Audio output
Audio Equalizer 1. By Pass, 2. Treble, 3. Surround, 4. Flat, 5. Classic, 6. Rock, 7. Pops, 8. Jazz, 9. With 3D, 10. With Bass
(16) Control Buttons: SW1/ SW2/ PiP/ PoP/ AV/ Menu/ Enter/ Resolution/ Lock/ Reset/ Mute/ Zoom/ Up/ Down/ Right/ Left
Supports scaling up to 1080p and down to 480p
HDMI cable distances for 1080p-60Hz up to 98 ft (30M)
Provided IR remote control
Various User Interface controls:
- Windows based GUI via a RS-232 interface control driver for 2000/XP/WIN7-32/WIN7-64/WIN8
- Front panel push button
- IR wireless remote control
- Ethernet Switch control
- Third party RS-232 controller (via simple ASCII)
Power supply 100~240VAC, 50/60Hz

Specifications

Type of Switcher	(4) HDMI and (4) VGA Inputs to (1) HDMI, VGA and Audio Output Selector Scaler Switch Box
Function Modes	Switch, (4) Quad, PiP & PoP
HDMI Supported	HDMI 1080p-@60Hz, H36-bit Deep color
HDCP / HDMI Supported	HDCP 1.2 Compliant, HDMI 1.3 version
Video Bandwidth	Double Data Rates: 165Mhz, Total 4.95Gbps bandwidth
Scaling Video Supported	HD: 480i/ 480p/ 720p and up to 1080i/p
Inputs	(4) HDMI and (4) VGA (HDMI or DVI digital source)
Output	(1) HDMI , VGA, Composie Video (NTSC/PAL)
External Second Output	(1) Modular Card: HDMI, HDBaseT™, HDMI&Coax (BNC), HDMI&IP channel (HDMI over ethernet), SDI, Fiber or HDMI&VGA
PiP Zoom Type	(5) zoom sizes
Audio Breakaway	Select separate Video and Audio source routing
Recall-Memory	Memory location for (8) addresses: H1, H2, H3, H4, V1, V2, V3, V4 source select buttons
Mute Audio	Mutes the HDMI audio output
Audio Equalizer	1. By Pass, 2. Treble, 3. Surround, 4. Flat, 5. Classic, 6. Rock, 7. Pops, 8. Jazz, 9. With 3D, 10. With Bass
Switcher Controls	(1) Select & Function buttons on front panel (1) IR Remote Control (switch control) (1) RS-232
Scaling Mode	Scaler down to 480p Scaler up to 1080p
HDMI Signal Booster	Distance for 1080p cable up to 98 feet (30M)
Infrared Frequency	38Khz
Firmware Update	Firmware update via RS-232
HDMI I/O Connector	HDMI Type A - SMD 19pin female type
Temperature	Operating Temperature 32°F - 100°F (0°C - 32°C)
Rack Mount	19 inch 1U High Rack Mount braket ( P/N: 1U-440L)
Dimensions (LxWxH)	17.32 x 9.84 x 1.73 in (440x250x44 mm)
Power Supply	AC 100~240 VAC 50/60Hz (universal type supply)
Safety Approvals	CE, FCC, REACH
Weight	2.36 Kgs / 5.19 lb (Unit only)
