SM-HDMV-PLUS SmartAVI Quad Screen HDMI Real Time Multiviewer and PIP KVM Switch

( 79 Reviews )

$3699.00 $2760.00

Description :

SM-HDMV-PLUS is a member of SmartAVI’s HD Quad Multiviewer series of products that allows users to view up to four different HD digital Video sources on one display device simultaneously. Quad Screen HDMI Real Time Multiviewer also supports USB Keyboard and Mouse functionality, allowing the user to access all four displays from one KVM set. Connections to video sources are managed via HDMI or DVI connectors, with advanced viewing options such as dual-mode, quad-mode, full-screen mode, and PIP (picture in picture) mode. Use this SM-HDMV-PLUS real time multiviewer device to simplify the management of multiple video sources by accessing and controlling them from a single set of controls on one display.

Add to Cart

Description
Reviews (5)

Product Features

View up to four sources on a single monitor at the press of a button
Supports USB Keyboard and Mouse
On-screen display (OSD) makes setup and switching easy
Display each computer with clean and crisp high-resolution video
Supports DVI-D input resolutions up to 1900 x 1200
Supports 1080p HDMI output (1920 x 1080)
Control any one computer or device while monitoring three others
Delivers uncompressed digital Video with zero signal loss
HDCP and HDMI 1.4 compliant
Supports EDID for total control of compliant displays
Outputs HDMI up to 40 feet
1920 x 1080 HDMI or DVI-D
Change views by pressing the tact switches, keyboard hotkeys and RS-232
Quad-mode splits the screen to show four sources on one screen
Dual-mode splits the screen to show two sources on one screen
PiP-mode displays one device in full screen with three thumbnail views

Specifications

VIDEO
Video Bandwidth	Single-link 340MHz [10.2Gbps]
Resolution HDTV	480i,480p,720i,720p,1080i,1080p
PC Resolution	800 x 600 up to 1920 x 1200
Input Video Signal	1.2 Volts
Input DDC Signal	5 Volts
Single Link Range	1080p
Format	HDMI 1.4
DVI Compliance	Single-link DVI-D 2.0
HDCP Compliance	1.0/2.0
Video Bandwidth	Single-link 340MHz [10.2Gbps]
Input Interface	(4) HDMI
Output Interface	HDMI
Connector	Type A [19-pin female]
USB
Input	USB 2.0, 1.1, and 1.0
Input Interface	(4) USB Type B
Keyboard	USB 1.0 (Type A)
Mouse	USB 1.0 (Type A)
CONTROL
Front Panel	Tact Switches
RS-232	DB9 (female)
POWER
Requirements	Internal 100-240 VAC
Power Supply Approvals	UL, CE, CSA, CEC, RoHS
MECHANICAL
Height	1.70 in. (1U)
Width	17 in. (431.8 mm.)
Depth	10.2 in. (259 mm.)
Weight	4.05 lbs. (1.84 kg.)
ORDERING INFORMATION
Part No.	Description
SM-HDMV-PLUS	4-Port HDMI, USB Real-Time Multiviewer and KVM switch with PiP/Quad/Full modes

Sam Smith - General Dynamics –

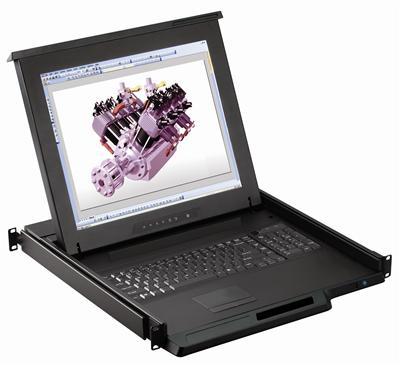

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.
