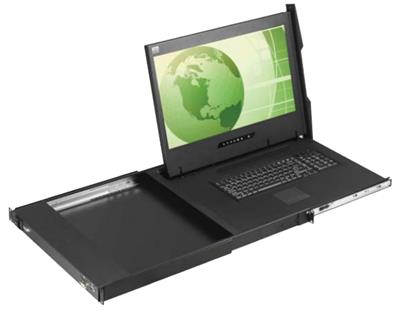

W119b Cyberview 1U 19" Widescreen Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Trackball


#W119b
$1500.00 $1112.00

Description :

W119b Cyberview Widescreen Rackmount LCD Keyboard is a combination of Keyboard, Video and touchpad or trackball mouse (KVM) in 1U drawer. This Widescreen Rackmount Monitor drawer is a cost effective solution and saves space for Rack environments. These wide screen format rack LCD units are used for a wide range of government, military, surveillance and commercial applications.



Item Number: #W119b


Product Features



  • 1U Rackmount LCD Keyboard combo with 19" Widescreen LCD ( VGA and DVI-D inputs)
  • Combo USB and PS2 input interface with KVM cable
  • Multiple Keyboard language selections
  • Enhanced aesthetics with new molded front panel and two point lock
  • Trackball keyboard
  • 19" Widescreen Rackmount LCD with resolution up to 1440 x 900


Specifications

LCD
19" Wide Screen Samsung LCD
Environmental
Operation
0° to 50°C Degree
Storage
-5° to 60 °C Degree
Relative Humidity
5~90%, non-condensing
Shock
10G acceleration (11ms duration)
Vibration
5~500Hz 1G RMS random vibration
Max Resolution
1440 x 900
Brightness (cd/m²)
300
Color Support
16.7 M
Contrast Ratio(Typ.)
1000:1
Viewing Angle (H/V)
160° x 160°
Display Area (mm
408 x 255
Tr Response Time (ms)
1.3
LCD Panel MTBF (hrs)
50,000
Resolution
720 x 400, 70 Hz ; 640 x 480, 60/ 70/ 72/ 75 Hz; 800 x 600, 60/ 70/ 72/ 75 Hz; 1024 x 768, 60/ 70/ 75 Hz; 1152 x 864, 60/ 70/ 75 Hz; 1280 x 720, 60/ 70/ 75 Hz ; 1280 x 1024, 60/ 70/ 75 Hz; 1440 x 900, 60 Hz
Plug & Play DDC
EDID 1.3
Console Port (Combo)
DVI-D / DB-15 connector for VGA / keyboard / mouse ( Combo PS2 or USB)
Power Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Max. 48 Watt, Standby 5 Watt
Regulation Approval
FCC, CE
Dimensions
Product (WXDXH)
17.4 x 18.1 x 1.75 inches
Packaging (WXDXH)
23.6 x 30.3 x 7.1 inches
Weight

Net
44lbs
Gross
57lbs
