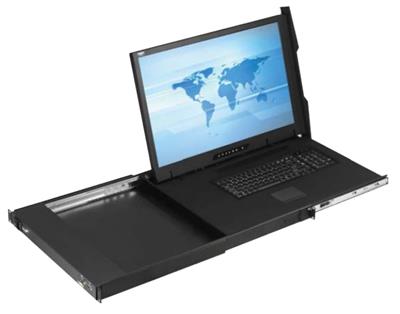

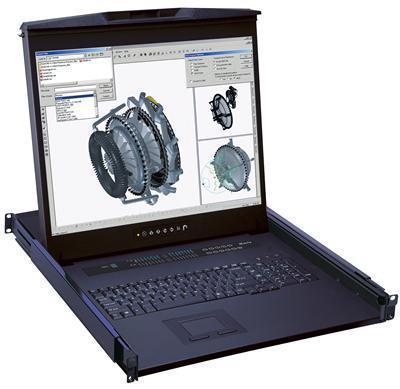

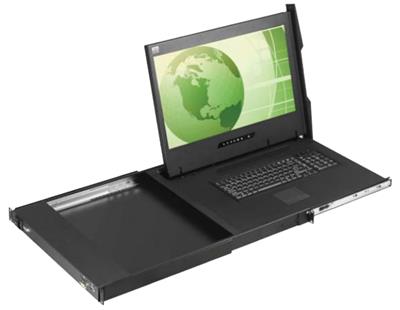

X124-IP1602e Cyberview 1U 24" 1920 x 1200 Rackmount Monitor Keyboard with 16 Port IP USB KVM Switch Touchpad


$3600.00 $3246.00

Description :

The newest CyberView Rackmount LCD monitor X124-IP1602e adds larger screen real estate to your rack environment. With the choice between a left facing monitor or a right facing monitor, as well as the integrated 16 port VGA/USB KVM, the CyberView X124 series handles the critical needs in datacenters or limited space server rooms and IT closets, while providing 1920x1200 high resolution support. X124-IP1602e allows remote administration from anywhere through the use of a secure IP connection.  In instances where a rack side is placed against a wall, the X124 allows the user to be positioned facing the wall comfortably rather than snugged up against it.




Product Features



  • 1U 24" widescreen LCD console drawer w/ 8 Port USB VGA KVM & IP access
  • Support 1920 x 1200 native WUXGA Ultra High resolution
  • 104-key keyboard with either touchpad or trackball options
  • New enhanced aesthetics with molded front handle
  • Cables must be purchased separately
  • Modular for a highly customizable rack console
  • Combo interface for PS/2 or USB input

Optional Configurations (Call for availability)

  • HDMI signal Input
  • SDI signal input
  • PIP & Picture by Picture viewing efficiency
  • SUN Micro and Mac keyboard options available
  • 12, 24, 48, 110-125 V DC Power
  • Additional languages supported
  • Multiple Integrated KVM Options


Specifications

Mechanical

Height
1.73 in (44 mm)
Width
17.4 in (441.6 mm)
Depth
31.5 in (800 mm)
Form Factor
1U rackmount on slide out rails
Weight
35.4 lbs. (16.1 kg)
Environmental

Operating Temperature
32 to 122°F (0° to 50°C)
Storage Temperature
23 to 140°F (-5° to 60°C)
Relative Humidity
5-90% Non-Condensing
Shock
10G Acceleration (11 ms duration)
Vibration
5-500Hz 1G RMS random vibration
Power

Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Screen On: 65W; PowerSave: 30W
LCD Display

Diagonal Size
24.1" Widescreen TFT
Max Resolution
1920 x 1200
Brightness (cd/m2)
300
Color Support
16.7 M
Contrast Ratio
1000:1
Viewing Angle
178° x 178°
Display Area
518 x 324 mm
Console Port
DVI-D
Compliance
FCC, CE, RoHS2, Reach
