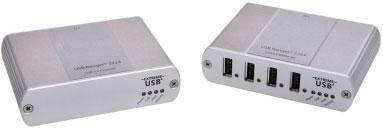

00-00252 Icron USB 2.0 Ranger 2212 Extender with two port hub

( 61 Reviews )

#00-00252

Please call us @ 216-798-7530 for Pricing and Availability

Description :

Icron's USB Ranger® 2212 is a 2 Port, remote powered, USB 2.0 Extension solution, enabling USB 2.0 connections at up to 480Mbps over 100m/330ft of Cat5 cabling. This 00-00252, USB 2.0 Extender Ranger 2212 delivers standard 500mA USB power over the Cat5 extension link to the two port remote hub, eliminating the need to locate the remote USB devices near an AC power outlet and greatly increasing the ease of deployment for USB Extension in industrial, medical, commercial and other applications. Icron Ranger 2212, and the Ranger 2200 family of products are powered by ExtremeUSB®, enabled by Icron’s LionsGate™ USB Extension ASIC. ExtremeUSB® provides true USB 2.0 extension at up to 480Mbps over a variety of media, without the need of additional software drivers. This Icron USB Extender, 00-00252 is a true plug-and-play solution, Icron USB 2.0 Ranger 2212, 00-00252 is compatible with all leading operating systems, and supports all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.

Product Features

System delivers power to remote hub over Cat 5 extension link simplifying installation and eliminating
the need for AC power close to the remote unit.
Powered by ExtremeUSB• ®. Long reach USB 2.0 enabled by Icron’s LionsGate™ USB 2.0 Extension ASIC.
Extends USB 2.0 High-speed and USB 1.1 (low-speed, full speed) devices up to 100m over Cat 5 cable
Operates with USB 2.0 high-speed host controllers and USB 1.1 classic hosts
Supports all USB device types: Control, Interrupt, Bulk and Isochronous at up to 480Mbps.
True plug and play, ready to operate right out of the box. No new driver installation required.
Supports all major operating systems including Windows• ®, Mac OS®, and Linux®.
Integrated hub provides two USB 2.0 ports. Number of devices can be increased using additional
USB hubs.
Remote unit provides standard 500mA to each USB port.
Ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices,
to touch screens, Web cams, and game controllers.

Specifications

Range	330 ft (100m) over Cat 5e (or better) cable
LEX unit USB connector	1 x USB Type B
LEX unit Link connector	1 x RJ45
REX unit Link connector	1 x RJ45
REX unit USB connector	2 x USB Type A
Maximum USB devices supported	14 USB devices or 3 USB hubs with 11 USB devices
Power adapter Maximum Rating	24V DC @ 1A (LEX only)
Current available to USB at REX	2 x 500mA
LEX and REX unit dimensions	3.94” x 2.99” x 1.02” (100 mm x 76 mm x 26 mm)
Operating temperature range	0°C to 50°C
Total system shipping weight	2.2 lbs. (1.0 kilograms)
Regulatory testing	FCC (Class B), IC (Class B), CE (Class B)
ESD Rating	EMC EN-61000-4-2:2001 8kV Contact, 16kV Air

View User Manual
