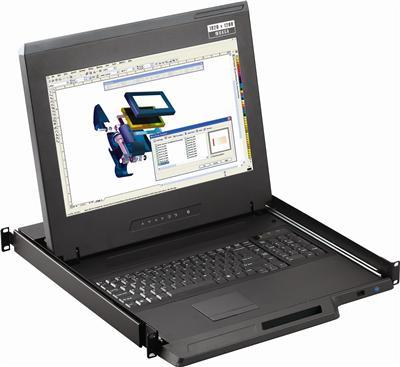

RP-W119 Cyberview 1U 19" WideScreen Rackmount LCD Monitor Drawer


#RP-W119
$1099.00 $904.00


Description :

RP-W119 Austin Hughes Cyberview 1U 19" Widescreen Rackmount LCD, also referred to as 1U LCD is a flip up monitor in 1U Drawer. This Widescreen Rack LCD unit saves space for your Rack environment. These LCDs support simple plug and play functionality and do not require any additional software. This TFT Rackmount LCD monitor allows for viewing and Monitoring of data even through closed glass doors. 1U rack mount LCD Monitor units come with an industrial grade LCD panel.




Product Features



  • 1U 19" Widescreen LCD Drawer with VGA and DVI-D
  • Short Depth design of 460mm ( 18.1" )
  • Sliding LCD allowing LCD to remain open when the Rack door is closed
  • Enhanced Aesthetics with molded front panel and two point lock
  • 3G / HD / SD-SDI Broadcast-grade input (Optional)
  • S-Video + Composite ( BNC ) (Optional)
  • HDMI or Audio input (Optional)
  • 48V, 24V or 12VDC input (Optional)




Specifications

LCD Panel
Manufacturer
Samsung
Size (diagonal)
19" WideScreen TFT
Max resolution
1440 x 900
Brightness (cd/m2)
300
Backlight
CCFL
Colors
16.7m
Contrast ratio (typ)
1000 : 1
Viewing angle (H/V)
160° x 160°
Active area (mm)
408 x 255
MTBF (hrs)
50,000
Signal input
VGA and DVI-D
Casing Color
Black ( RAL 9005 )
Weight

Net
12.5 kgs ( 28 lbs )
Gross
16.5 kgs ( 36 lbs )
Environmental

Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, Non-condensing
Shock
10G Acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory
FCC, CE
Power

Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Dimensions

Product
441.6 x 460 x 44 mm / 17.4 x 18.1 x 1.73 inch
Packing
590 x 687 x 120 mm / 23.2 x 27 x 4.7 inch
